Model: ARTB FM (AR Tactical bullpup)

This bullpup pistol receiver uses the foxtrot mike mike15 gen 2 upper receiver only.

This receiver uses the FM Products upper receiver. You do not need the AR lower receiver as this receiver replaces it. this receiver is a serialized part so it will need to ship to your ffl as it is considered a firearm. this is not a kit!

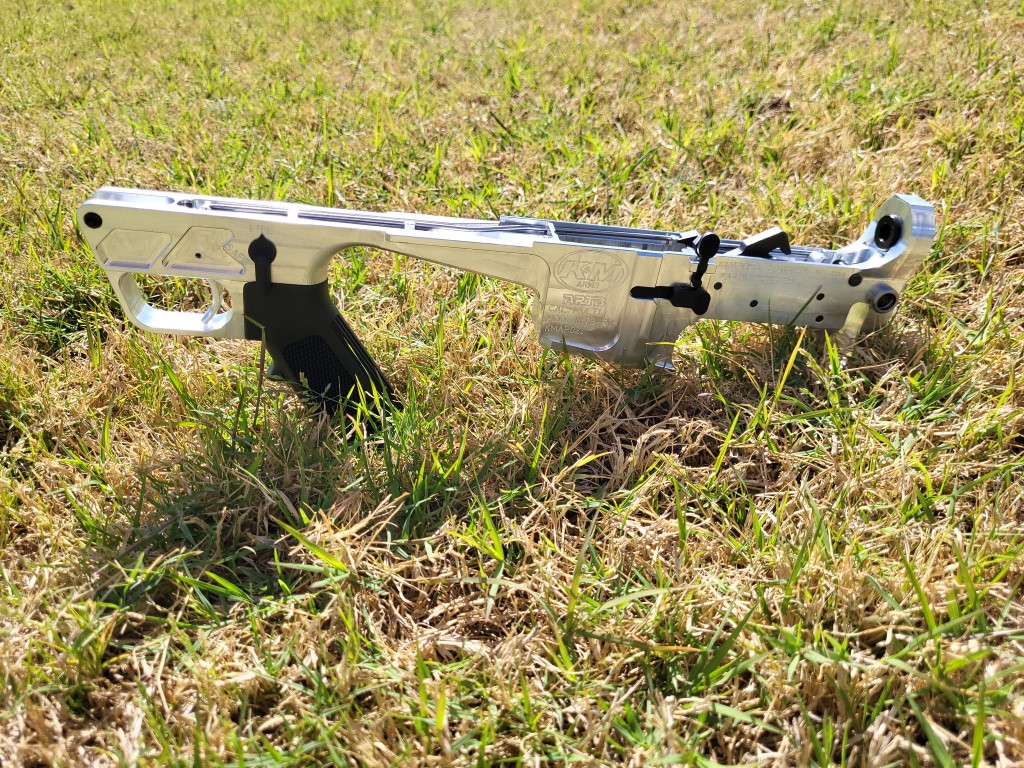

These pictures are pre production as the lower has not been anodized. We will update them when we are ready to start shipping. MSRP $650

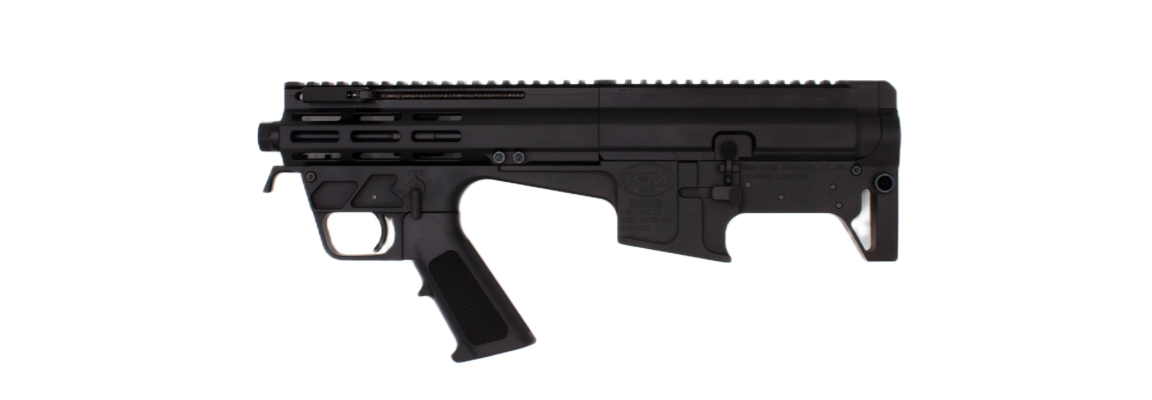

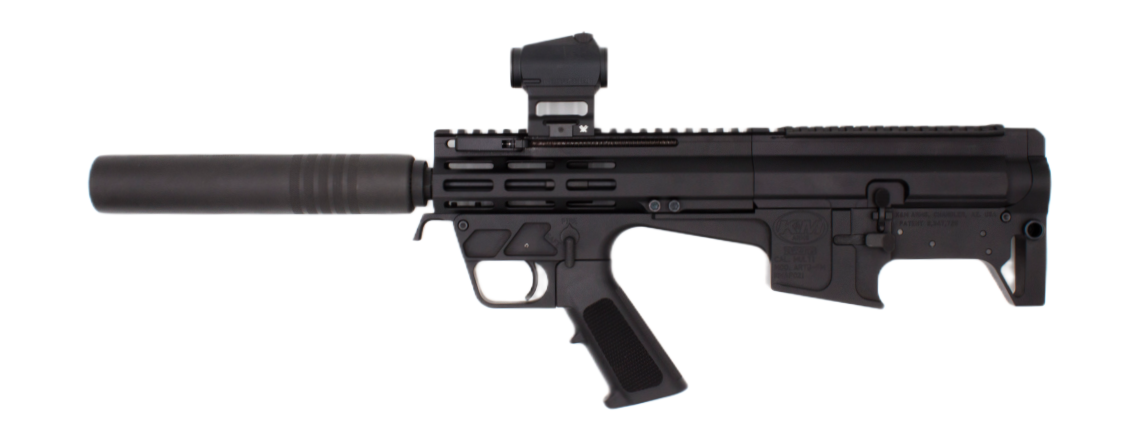

300 BLK 9" FM products upper;

300 BLK 9" FM products upper;

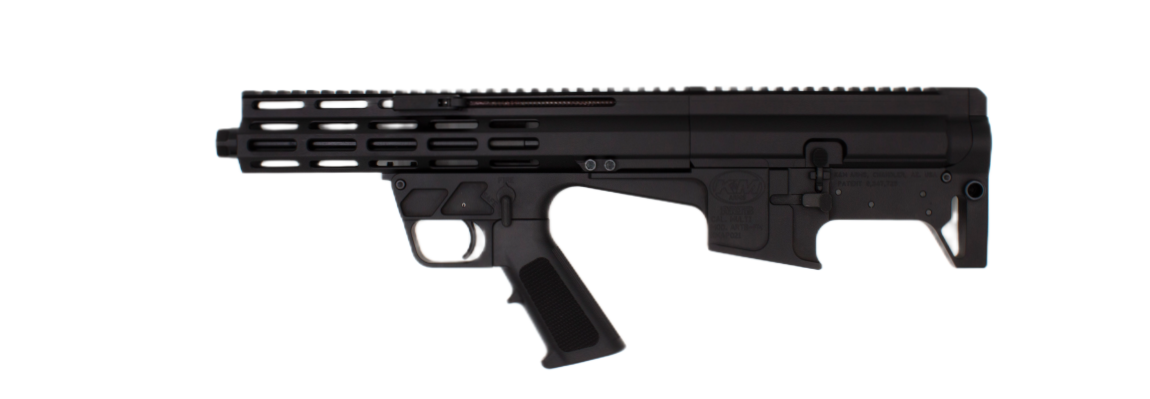

300 BLK 12.5" FM products upper;

5.56mm 11.25" FM products upper;

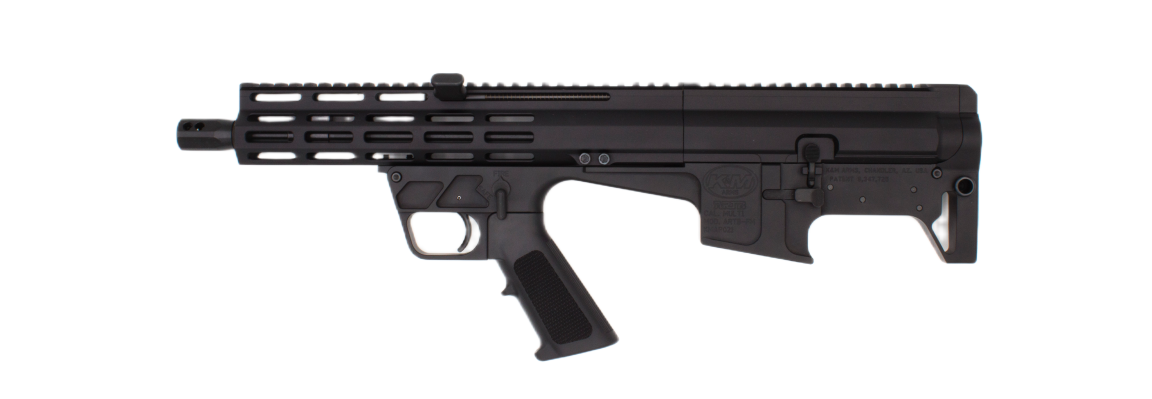

5.56mm 12.5" FM products upper;

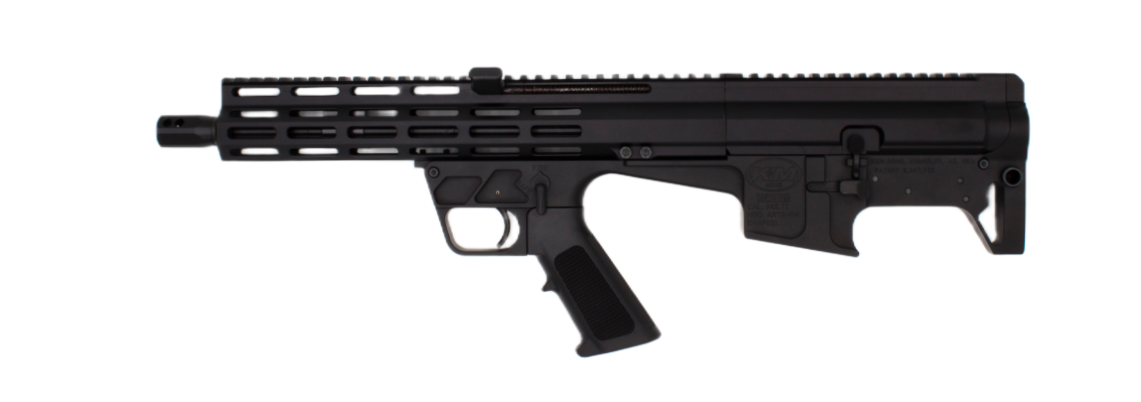

5.56mm 13.9" FM products upper;



Specs:

Caliber: MULTI
4.0lb to 5.0lb adjustable MATCH trigger pull with patented trigger linkage. (Something the bullpup industry is not known for )
Length of pull : 13.4 "
Weight: 1lb 10.6oz (Lower receiver only)
Mil Spec type III Class 2 color black anodize.


Features:

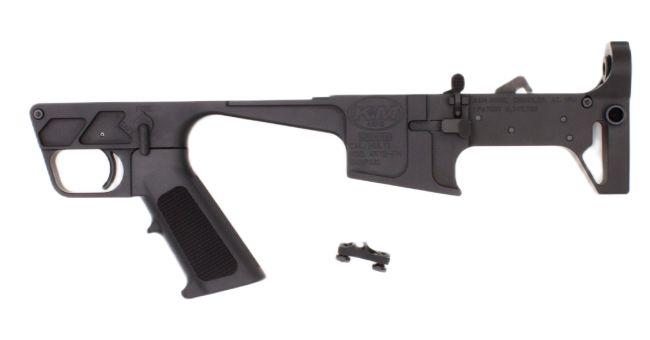

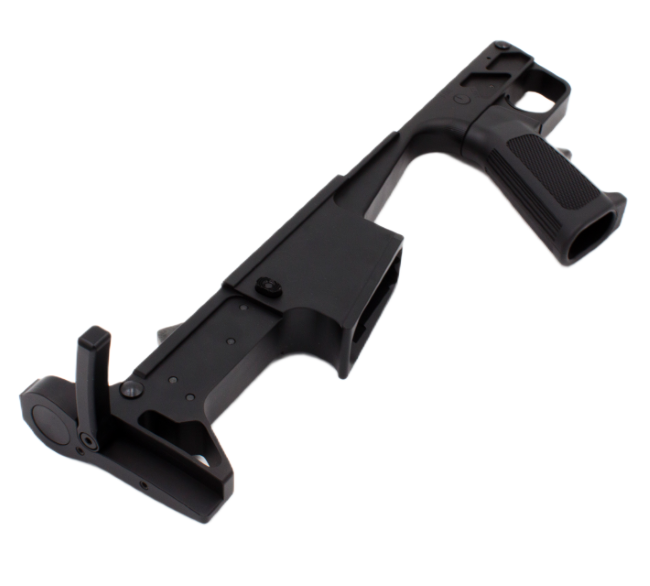

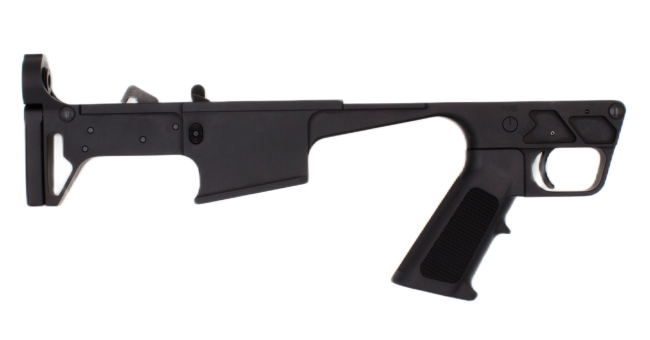

Billet aluminum Lower.
Adjustable hammer assy with pull range from 4-5 lb without removing the assembly.
Utilizes standard AR-15 magazine catch, bolt catch, pistol grip, safety selector, takedown pins, springs and pins.
Slim billet trigger.
QD sling adapter at the butt of the rifle.
Uses Standard AR mags. (none supplied with receiver)
Uses standard AR15 pistol grip that can be changed to use most all other AR grips. Can not be one with the beaver tail
Ambi mag release.
Tactical flared magwell for quick magazine loading.

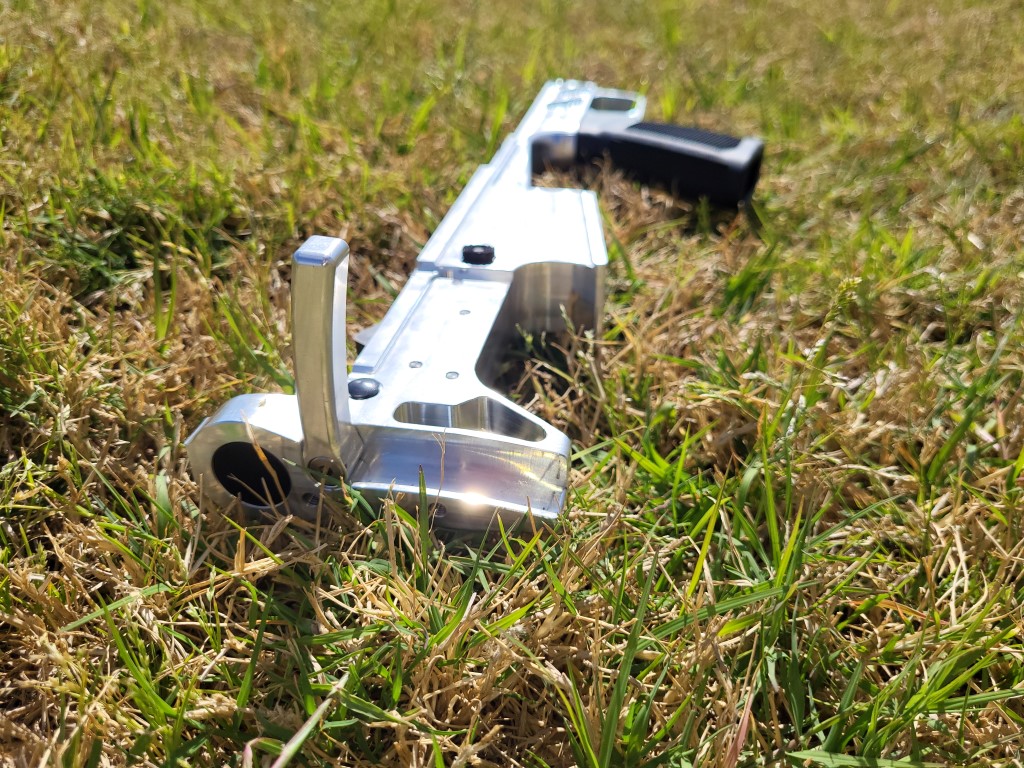

Built in pistol brace at the end of the receiver. Has detents so it will stay open when in use and closed when not in use.
Front takedown lug that will M-LOK on the hand guard of the upper receiver. All hardware will be provided.


What you need to Purchase from FM PRODUCTS:

Upper receiver of your choice in 5.56mm or 300BLK.
ONLY the MIKE15 GEN 2 receivers work.

Things to note and of interest.
The lower does not make the pistol longer than the OAL of the upper.
300BLK MIKE15 Gen 2 Uppers
9" weight 3lb 2.2oz OAL 16.625"
12.5" 3lb 9.6oz OAL 20.125"

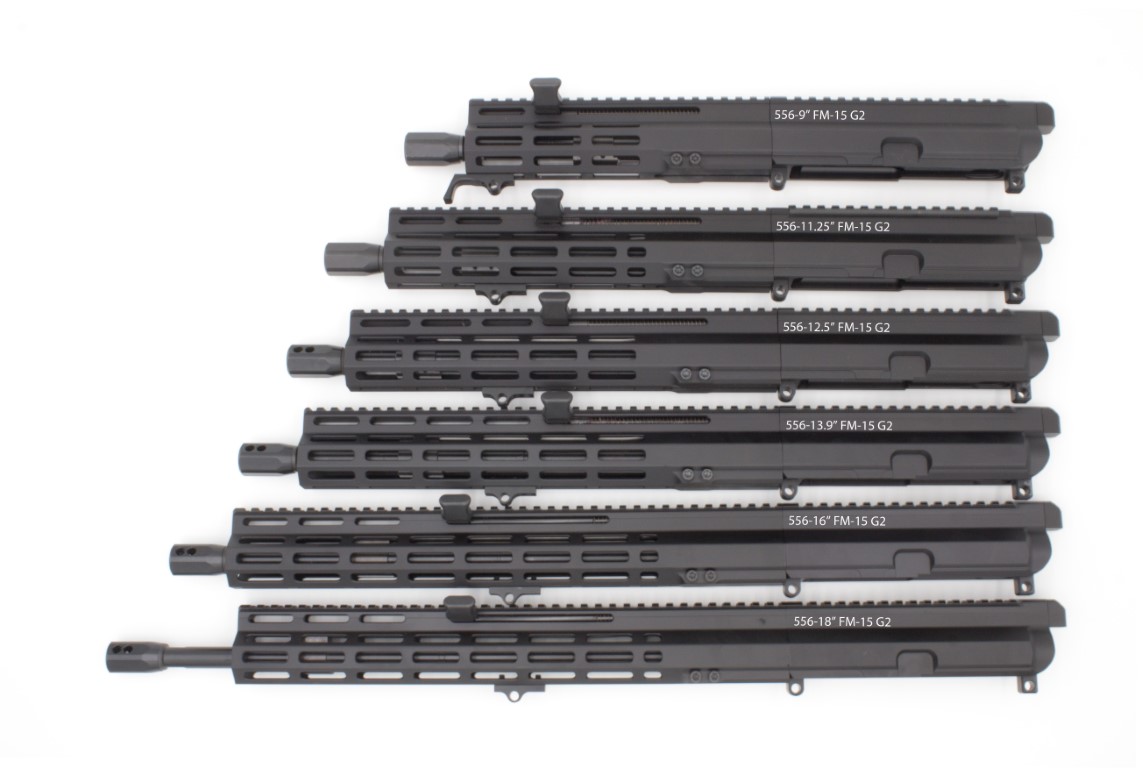

5.56mm Uppers MIKE15 Gen 2 Uppers

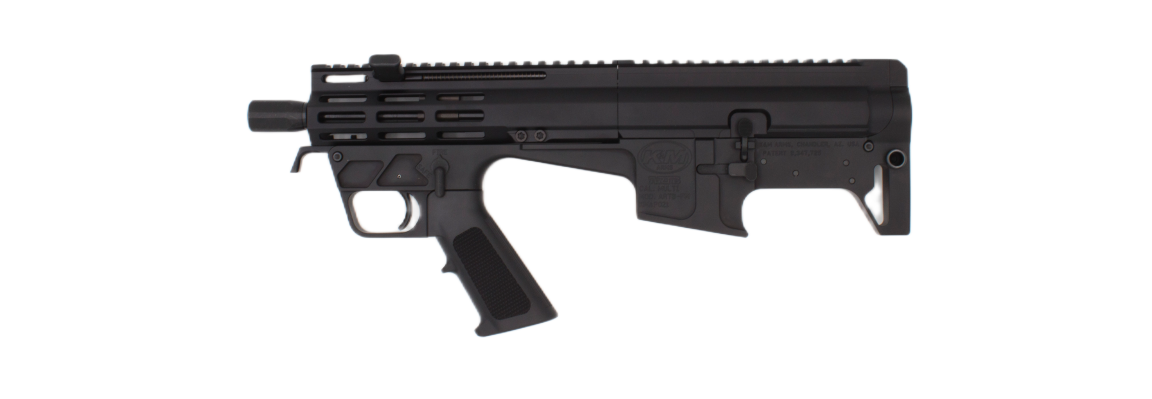

9" weight 3lb 3.2oz OAL 16.625"

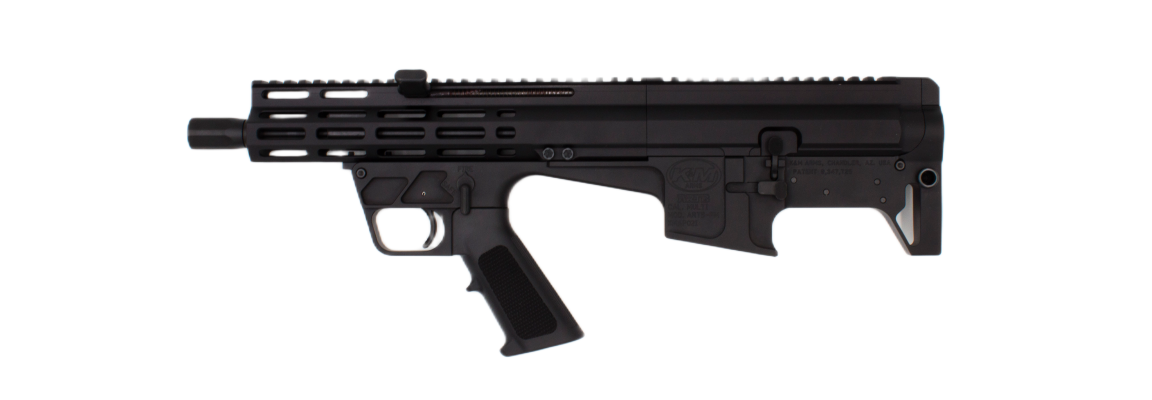

11.25" 3lb 8.6oz OAL 18.875 "
12.5" 3lb 12oz OAL 20.125"
13.9" 3lb 14.4oz OAL 21.525 "

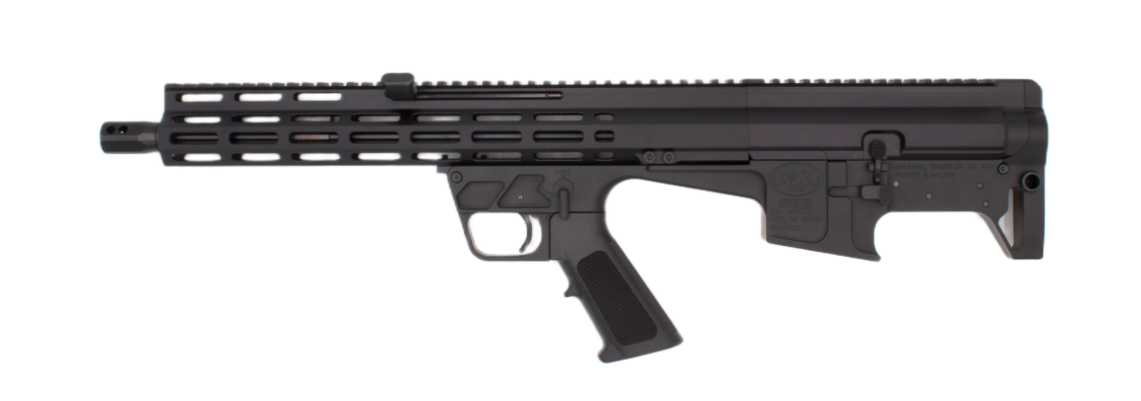

16" 4lb 3.6oz OAL 23.625 "
